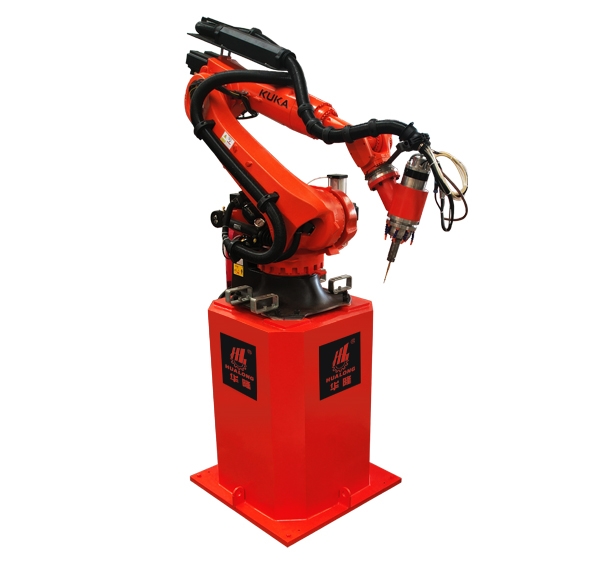

7 Axis Robot Arm CNC RouterHLRB-7A3D 7轴机器人

领跑智能制作新“石”代

7 Axis Robot Arm CNC RouterHLRB-7A3D 7轴机器人

所属的企业:华隆 所属单位种别:雕镂武器装备

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

进行推(tui)销可留言咨询德律(lv)风(feng)固(gu)🐓话号码,俺(an)们(men)会与您洽谈!

Purchase please leave a message phone and email, we will contact you!

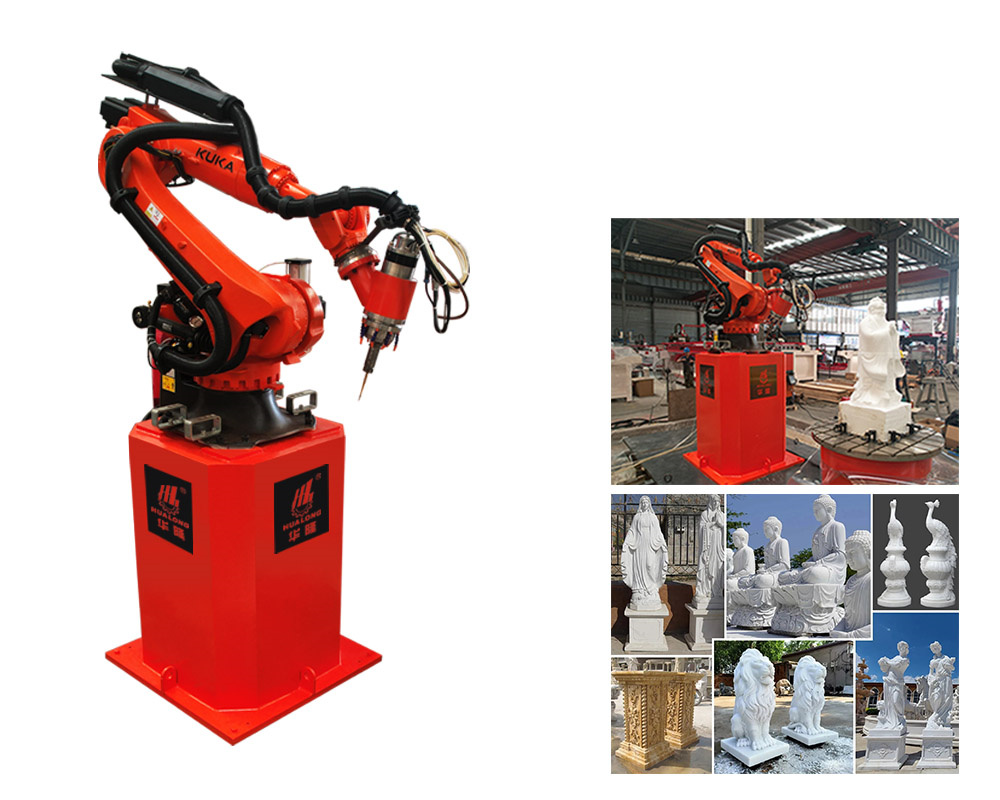

HLRB-7A3D七轴机器人是在库卡机器人的根本上,专为3D石雕工艺设想的主动化集成二次开辟产物,接纳离线编程体系Sprut CAM对庞杂三维外型雕塑主动化加工,设置装备摆设能够矫捷变革,具备任务速率快、高精度(高速轴集成在手臂上)、多功效、主动化、操纵便利等长处。今朝在异型石材雕镂、石膏产物雕镂、泡沫产物雕镂、陶瓷模具、玻璃钢成品等圆雕、浮雕范畴都已构成了焦点手艺的堆集。
HLRB-7A3D 7 Axis Robot is an automation integrated and secondary developedproduct on the base of KUKA robot, specially  designed for 3D stone carving process, very strong, high- precision (high-speed shaft integrated in the arm), verstile and easy to operate.It uses the offline programming system Sprut CAM to perform complex workpiece processing. The configuration can be changed at will. The robot can work normally even in harsh environments, with a service life of up to 15 years and an average time between accidents as long as 70,000 hours.


Features:
(1) Work quickly and efficiently with extremely high continuous track accuracy
(2) Working circumference of 3100 mm
(3) The software can realize the automation of complex 3D modelling sculpture processing
(4) Routing robots can produce more parts per hour than manual routing or CNC machine routing
(5) Robots increase productivꦛity, repeatability, and quality while helping to simplify a tedious and complex application.


接洽咱们,获得完全计划!
Contact us to obtain the complete solution!




手艺参数

TECHNICAL DATA

HLRB-7A3D 7 Axis Robot

真实感环境下

Actual Load

210 kg
最大的臂展 Max. Armspread 2700 mm
上限工艺的尺寸 Max. Processable Size 1000x2500mm
换向展转世界任务台内直径 Diameter of Rotation Worktable 1000 mm
主要效率 Spindle power 15 kw
较大 CNC主轴转数 Max. Rotating Speed of Spindle

18500 rpm/min

重复多次位置准确度 Repeat positioning accuracy

< +/- 0.06 mm

撑持的地方 Tools supported

粗生产加工(gong)锯/车刀(dao)盘♕/立车刀(dao)盘/拋光(guang)轮

PC软件 Offline Software Sprut CAM

轴 1 的过程整体规(gui)模和浓度

Motion range & Speed of Axis 1 +/-185° 86°/s

轴 2 的促销活动投资(zi)规模和传送速度

Motion range & Speed of Axis 2 0°/-146° 84°/s

轴 3 的促销活(huo)动市场规模和速率单位

Motion range & Speed of Axis 3 +155°/ -119° 84°/s

轴 𒐪4 的行为(wei)市场规模(mo)和传(chuan)输速度(du)

Motion range & Speed of Axis 4 +/-350° 100°/s

轴 5 的移动整体(ti)规模和波特率

Motion range & Speed of Axis 5 +/-125° 110°/s

轴 6 的(de)主题(ti)活动规模较和数率

Motion range & Speed of Axis 6 +/-350° 184°/s

轴 7 的活动组织大小和传(chuan)输(shu)率

Motion range & Speed of Axis 7

无(wu)穷改变 84°/s
