HDTH-100P Quarry Stone DrillerHDTH-100P潜孔钻

领跑智能制作新“石”代

HDTH-100P Quarry Stone DrillerHDTH-100P潜孔钻

所在产品: 所在区域种别:生成物库

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

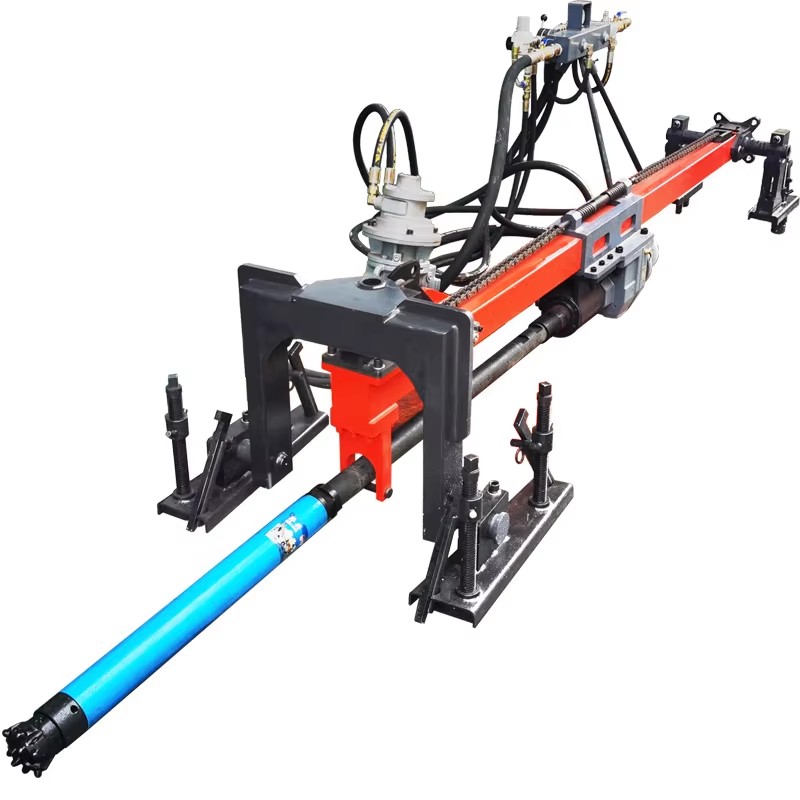

HDTH-100P 岩石钻孔机
这台由优良紧缩氛围马达驱动的潜孔钻机,用于在采石进程中钻凿大直径的程度、垂直和倾斜孔洞,以便装配金刚石钻杆以停止采石功课。它是用于采石的金刚石锯机的必备帮助装备。
首要特色:
1. 推动、转向和碰撞均由紧缩氛围供给能源。2. 高品德的气动元件确保了低能耗和低气耗,同时进步了效力。3. 布局简略,节制机制集合,易于操纵。4. 分量轻,装配和运输简洁。5. 这类管状装配独有的拧紧和卸料机制大大加重了休息强度。6. 特地用于指导钻探的设想。

HDTH-100P Quarry Stone Driller

The DTH drilling machine, driven by high quality compressed air motors, is used for driling laಌrge diameter horizontal, vertical and slantwise holes for the ܫpassage of diamond wire during stone quarrying. It's an essential assistive equipment for wire saw machine to quarry stone.

Main Features:
1. Forward, turn and impact are all powered by compressed air.
2. High quality pneumatic components ensure the low energy and air consumption and high efficiency.
3. Simple structure, centralized control mechanism, easy to operate.
4. Light weight, easy installation and transportation.
5. Particular screwing and discharging mechanism of the tube devices reduces the intensity of labor.
6. Particular design for guiding drilling.


接洽咱们,获得完全计划!
Contact us to obtain the complete solution!


福建省华隆机器无限公司,福建华隆机器,华隆机器,华隆机器装备,石材机器厂,石材机器装备,石材切割机厂家,石材切割机哪家好,矿山机厂家,矿山机价钱,圆盘锯出产厂家,数控五轴桥切机,四轴桥切机,4+1桥切,5+1桥切,三轴桥切机,红外线桥切机,石材切机,石材加工场装备,石材抛光机,石材抛光装备,石材加工中间,台面加工中间,水刀,水刀切割机,矿山开采装备,矿山圆盘锯,圆盘双刀锯,矿山机,矿山锯。石材桥锯,水刀切割机价钱,水刀切割机厂家,福建石材机器厂家,福建石材切割机厂家,福建石材装备厂家,石材切割哪家好,五轴桥锯,数控五轴桥锯,大理石桥锯切割机,花岗岩桥锯切割机,石英石桥锯切割机,
Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet

Technical Data

Driving system

kw
3.0 / 1.5 air motor
Diameter of drill hole
钻孔直径
mm
90
Max. depth of drilling
最大钻孔深度
m
30
Speed of Drilling
钻孔速率
m/h
6-8
Min. air pressure
最小气压
Mpa
0.6-0.7
Air consumption
气压耗损量
M3/min
8-10
Single feeding distance
单次进给间隔
m
1
Drilling direction
钻孔方秘
any direction
Net. Weight
分量
kg
600
